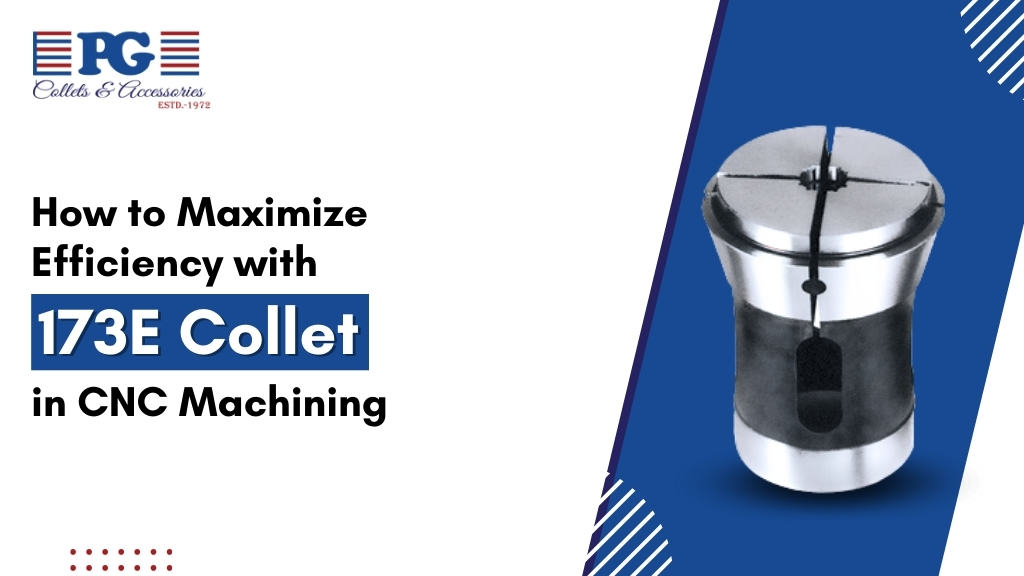

How to Maximize Efficiency with 173E Collet in CNC Machining

In the world of CNC machining, precision and efficiency are paramount. The tools and components used can make a significant difference in the outcome of a project, and one such critical component is the collet. Specifically, the 173E collet stands out as a versatile and essential tool in achieving high-efficiency machining. This article delves into the importance of 173E collets, their application in CNC machining, and how they can be utilized to maximize efficiency.

Understanding the 173E Collet

What is a 173E Collet?

A collet is a specialized type of chuck that forms a collar around a tool or workpiece to hold it securely in place. The 173E collet is a specific type of collet, known for its precision and reliability. It’s widely used in CNC (Computer Numerical Control) machining, where accuracy and stability are crucial.



Design and Features of 173E Collet

The 173E collet is designed with high precision in mind. It typically features a cylindrical shape with slits along its length, allowing it to compress tightly around the tool or workpiece. The design ensures that the collet can grip the tool firmly, minimizing runout and maximizing concentricity.



Key features of 173E collet include:

  • High Precision: The 173E gripping collet is engineered to provide a tight grip on the tool, reducing any movement during machining and ensuring precise cuts.
  • Versatility: These collets are compatible with a wide range of tools and machines, making them a popular choice in various CNC applications.
  • Durability: Made from high-grade materials, 173E tool holder are designed to withstand the rigors of continuous use, providing long-lasting performance.



The Role of 173E Collet in CNC Machining



Enhancing Tool Stability

One of the primary roles of the 173E gripping collet in CNC machining is to enhance tool stability. In CNC operations, the tool’s stability directly impacts the accuracy of the machining process. Any slight movement or vibration can result in deviations from the desired specifications, leading to errors and material waste.

The 173E tool holde tight grip on the tool ensures minimal movement during operation. This stability is crucial when working with high-speed CNC machines, where even the slightest deviation can lead to significant errors.



Improving Machining Precision

Precision is a key factor in CNC machining, and the 173E collet plays a critical role in achieving it. By holding the tool securely, the collet ensures that cuts are made precisely according to the programmed path. This precision is particularly important in industries where exact measurements are required, such as aerospace, automotive, and medical device manufacturing.



Reducing Tool Runout

Tool runout is a common issue in CNC machining, where the tool’s axis is not perfectly aligned with the spindle. This misalignment can lead to uneven cuts, poor surface finishes, and increased tool wear. The 173E collet, with its precise design, helps minimize runout by ensuring the tool is perfectly centered within the spindle. This reduction in runout leads to better quality cuts and extends the life of the tool.



Maximizing Efficiency with 173E Collet



Selecting the Right 173E Collet

The first step in maximizing efficiency with 173E collets is selecting the right collet for your specific application. The size and type of the tool, as well as the material being machined, will dictate the appropriate collet. It’s essential to choose a 173E gripping collet that matches the tool shank size to ensure a secure grip and minimize any potential movement.



Proper Installation and Maintenance

Efficiency in CNC machining is not only about the tools used but also about how they are installed and maintained. The 173E collet must be installed correctly to function optimally. This includes ensuring that the collet is clean, free from debris, and properly aligned with the spindle.

Regular maintenance is also crucial. Over time, collets can wear down, leading to reduced gripping force and precision. Regular inspection and replacement of worn-out collets will help maintain efficiency in the machining process.



Optimizing Machining Parameters

To get the most out of 173E collets, it’s essential to optimize the machining parameters. This includes adjusting the spindle speed, feed rate, and depth of cut to match the capabilities of the collet and the tool. By fine-tuning these parameters, you can achieve the best possible balance between speed and precision, leading to more efficient machining.



Balancing Speed and Precision

While speed is important in CNC machining, it should not come at the expense of precision. The 173E collet allows for high-speed machining while maintaining precision, but it’s essential to find the right balance. Overloading the collet with excessive speed or force can lead to tool slippage, reduced precision, and potential damage to the collet itself. By carefully balancing speed and precision, you can maximize both the efficiency and quality of your machining operations.



Advantages of Using 173E Collet



Increased Productivity

One of the main advantages of using 173E collets in CNC machining is increased productivity. Their ability to hold tools securely at high speeds allows for faster machining without sacrificing precision. This increased speed translates to shorter production times and higher throughput.



Enhanced Tool Life

The secure grip provided by 173E collets reduces tool wear, leading to longer tool life. By minimizing runout and vibration, the collet ensures that the cutting edge remains sharp for longer periods, reducing the need for frequent tool changes and associated downtime.



Improved Surface Finish

Surface finish is a critical aspect of CNC machining, particularly in industries where aesthetics or surface functionality are important. The precision and stability offered by 173E collets result in smoother cuts and better surface finishes, reducing the need for additional finishing operations.



Versatility Across Applications

The versatility of 173E collets makes them suitable for a wide range of applications. Whether you’re working with metals, plastics, or composites, these collets provide the precision and reliability needed for efficient machining. Their compatibility with various tools and machines further enhances their value in diverse CNC operations.



Common Challenges and Solutions



Tool Slippage

Despite the high precision of 173E collets, tool slippage can still occur if the collet is not properly maintained or if the wrong size is used. To prevent slippage, ensure that the collet is regularly inspected for wear and that it matches the tool shank size. If slippage persists, consider using a different collet size or type better suited to your application.



Wear and Tear

Like all tools, 173E collets are subject to wear and tear over time. Regular maintenance, including cleaning and inspection, is essential to prolong the life of the collet. If wear is detected, the collet should be replaced promptly to maintain machining efficiency.



Misalignment

Misalignment between the collet and the tool can lead to reduced precision and increased tool wear. To avoid this, ensure that the collet is properly aligned with the spindle during installation. Using high-quality collets and following the manufacturer’s installation guidelines can help minimize misalignment issues.



The Future of 173E Collet in CNC Machining

As CNC machining technology continues to evolve, so too will the tools and components used. The 173E collet is likely to remain a staple in the industry due to its precision, reliability, and versatility. Future developments may include advancements in collet materials, coatings, and designs to further enhance performance and efficiency.



Innovations in Collet Design

Manufacturers are constantly seeking ways to improve collet performance. Innovations such as enhanced gripping mechanisms, improved materials, and advanced coatings are on the horizon. These innovations will likely increase the durability and efficiency of 173E collets, making them even more effective in CNC machining.



Conclusion

The 173E collet is an indispensable tool in CNC machining, offering the precision, stability, and versatility needed to achieve high-efficiency machining. By selecting the right collet, ensuring proper installation and maintenance, and optimizing machining parameters, you can maximize the efficiency of your CNC operations. As technology continues to advance, the High-precision collet will likely remain at the forefront of CNC machining, contributing to improved productivity, enhanced tool life, and better-quality finishes.

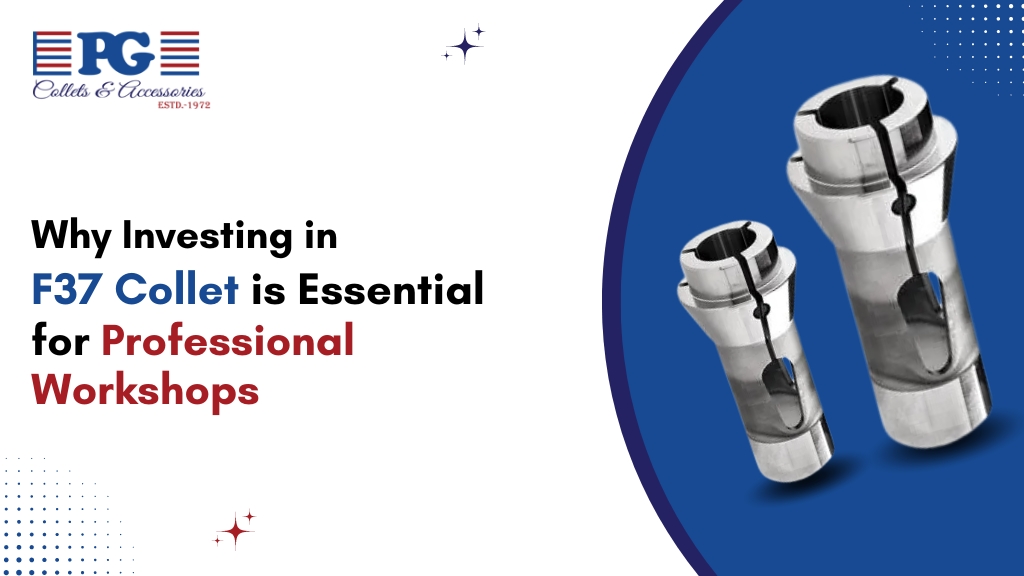

Why Investing in F37 Collet is Essential for Professional Workshops

In precision machining, the quality of tools and components directly impacts the efficiency and accuracy of operations. Among these critical components, F37 collet stand out as essential for holding and securing tools and workpieces. This article explores why investing in F37 collets is crucial for professional workshops, emphasizing their role in improving performance, reliability, and overall operational success.

The Importance of F37 Collet in Precision Machining

F37 collets are designed to provide a secure and precise grip on tools and workpieces, which is fundamental for achieving high-quality results in various machining processes. These collets are widely used in milling, turning, and drilling applications due to their ability to maintain alignment and stability. Understanding the importance of F37 collet helps workshops ensure that they are equipped with the right tools for achieving the highest standards of precision and performance.



Enhancing Precision and Accuracy



  • Achieving Accurate Results



Precision is a critical factor in machining, and F37 collets are instrumental in achieving it. The design of F37 Tool Holders ensures a tight and accurate fit for tools and workpieces, which is essential for making precise cuts and maintaining tight tolerances. Investing in F37 collets allows workshops to consistently produce high-quality components and products with exact measurements and finishes, meeting the demanding requirements of professional machining tasks.



  • Consistent Tool Clamping



F37 collets provide consistent clamping force, which is crucial for maintaining tool stability during machining. This consistency reduces the likelihood of tool slippage or misalignment, which can lead to defects or inaccuracies in the finished product. By using F37 collets, workshops ensure that their tools remain securely in place, resulting in more reliable and accurate machining operations.





Improving Operational Efficiency



  • Streamlining Setup Processes



Efficiency is a key factor in the success of any workshop. F37 Spindle Collets contribute to operational efficiency by reducing the time needed for setup and adjustments. Reliable collets offer a secure grip, minimizing the need for frequent recalibrations and adjustments. This efficiency allows machinists to quickly and confidently set up their equipment, leading to faster turnaround times and increased productivity.



  • Reducing Maintenance and Downtime



Inferior collets can lead to frequent maintenance issues, including tool movement, wear, and alignment problems. F37 collets, known for their durability and reliability, help reduce the frequency of maintenance and repairs. This results in fewer disruptions and a more consistent workflow, allowing workshops to maintain a steady pace of operations without the constant need for equipment adjustments.



Ensuring Quality Control



  • Maintaining High Standards



Quality control is essential for professional workshops to ensure that products and components meet high standards. F37 collets play a crucial role in this process by providing precise and stable holding of tools and workpieces. This precision contributes to uniform machining results, reducing the risk of defects and ensuring that each component adheres to the required specifications. Investing in F37 collets supports workshops in achieving and maintaining superior quality control.



  • Supporting Complex Machining Tasks



Complex machining tasks require reliable tooling solutions. F37 collets offer the stability and precision necessary for handling intricate and detailed operations. Their ability to securely hold tools and workpieces ensures that advanced machining techniques, such as multi-axis operations and high-speed cutting, are executed with accuracy. This reliability is essential for achieving complex designs and maintaining high craftsmanship in finished products.



Long-Term Cost Benefits



  • Cost-Effective Investment



While the initial investment in F37 collets may be higher, the long-term benefits make them a cost-effective choice. The durability and reliability of these collets lead to lower maintenance expenses and fewer replacements over time. Workshops can save on costs associated with frequent repairs and downtime, ultimately achieving a better return on investment. The enhanced performance and efficiency provided by F37 collets also contribute to better resource utilization and overall cost-effectiveness.



  • Extending Equipment Longevity



The longevity of workshop equipment is closely linked to the quality of the components used. F37 collets are designed to last, even under demanding conditions. Their robust construction and resistance to wear ensure that they maintain their performance over an extended period. By investing in durable F37 collets, workshops can extend the lifespan of their equipment and reduce the frequency of equipment upgrades.



Supporting Technological Advancements



  • Compatibility with Modern Techniques



As machining technology evolves, workshops are adopting advanced techniques and equipment. F37 Grippers support these advancements by providing the precision and stability required for modern machining processes. Whether it’s high-speed cutting, automated systems, or advanced tooling techniques, F37 collets ensure that workshops can effectively implement and benefit from the latest technological innovations.



  • Expanding Workshop Capabilities



Investing in F37 collets enhances the overall capabilities of a workshop. With reliable and precise collets, workshops can handle a wider range of machining tasks and achieve more complex designs. This versatility allows workshops to expand their service offerings and stay competitive in a rapidly changing industry. F37 collets provide the foundation for workshops to explore new opportunities and take on more challenging projects.



Ensuring Safety and Reliability



  • Minimizing Risk of Tool Failures



Safety is a critical concern in any machining environment. F37 collets contribute to a safer workplace by providing a F37 Grippers on tools and workpieces. This stability reduces the risk of tool failures and unexpected movements, which can pose hazards to operators. By investing in reliable F37 collets, workshops can create a safer working environment and protect their personnel from potential injuries.



  • Promoting Consistent Performance



Consistent performance is essential for meeting client expectations and maintaining operational excellence. F37 Workpiece Holders are held securely, reducing the likelihood of disruptions and inconsistencies. This reliability promotes a smoother workflow and helps workshops meet deadlines and deliver high-quality results consistently. For workshops that prioritize operational excellence, F37 collets are a crucial element for achieving reliable performance.



Conclusion

Investing in F37 collet is a strategic decision that offers numerous benefits for professional workshops. From enhancing precision and accuracy to improving operational efficiency and reducing maintenance, the advantages of F37 Tool Holders are significant. By choosing F37 Workpiece Holders can achieve superior machining results, increase productivity, and ensure long-term cost savings. For any professional workshop committed to excellence and success, investing in F37 Precision Collets is an essential step toward driving performance and maintaining a competitive edge in the industry.
