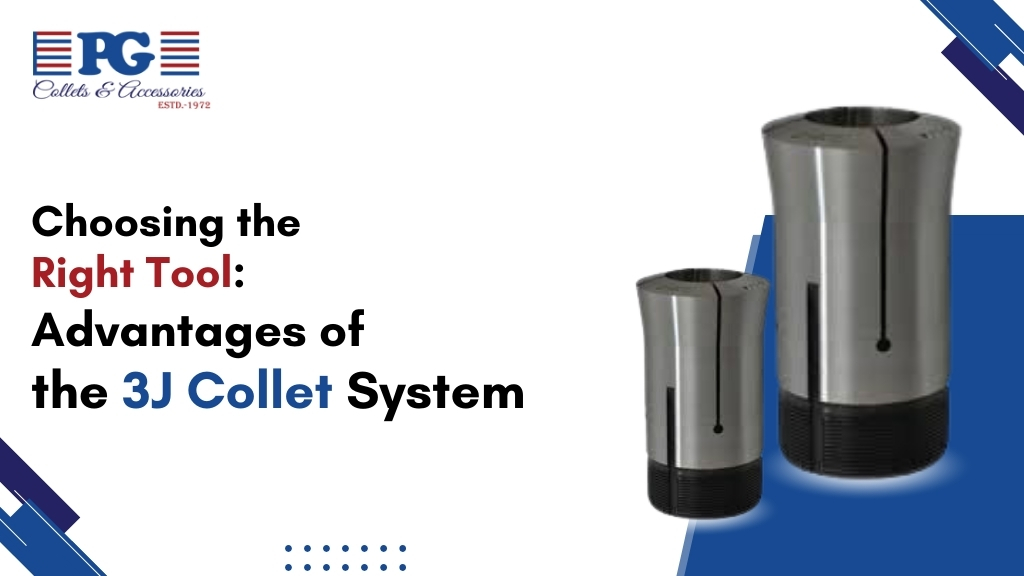

Choosing the Right Tool: Advantages of the 3J Collet System

Why the 3J Collet System is the Best Choice for Precision Machining

When it comes to precision machining, selecting the right tooling can make a substantial difference in your outcomes. Among the myriad of options available, the 3J Collet System stands out for its exceptional performance and versatility. This article will delve into the advantages of using the 3J Collet System, offering insights into why it might be the perfect choice for your precision machining needs.



What is a 3J Collet?

A 3J Collet is a specific type of clamping device used in various machining processes to securely hold tools or workpieces. The term “3J” refers to a series of collets known for their high precision and reliability. These collets are designed to provide a superior grip, maintain accuracy, and offer versatility across different applications.



Key Advantages of the 3J Collet System



1. Exceptional Precision and Accuracy

One of the foremost advantages of the 3J Collet System is its precision. Precision is critical in machining, where even the slightest deviation can lead to errors. The 3J Tool Holder is engineered to offer minimal runout, which ensures that the tool or workpiece remains perfectly aligned during operation. This high level of accuracy is achieved through the collet’s meticulously designed geometry and high-quality manufacturing standards.



2. Versatility Across Applications

The 3J Collet system is renowned for its versatility. It can accommodate a wide range of tool sizes and types, making it suitable for various machining tasks. Whether you are working with different diameters or frequently switching between tools, the Precision Collet can handle these demands with ease. This adaptability makes it a valuable asset in both CNC machines and manual lathes, among other equipment.



3. Enhanced Tool Holding Force

Another significant benefit of the 3J Collet System is its enhanced tool holding force. The collet’s design ensures a tight and secure grip on the tool or workpiece, which minimizes the risk of slippage. This secure clamping is crucial for maintaining consistent machining results and avoiding defects that can arise from tool movement or instability.



4. Quick and Easy Tool Changes

Efficiency is key in any machining environment, and the 3J Collet System excels in this area. The system is designed for quick and straightforward tool changes, reducing downtime and increasing productivity. The ease of changing tools without the need for extensive adjustments allows for faster setup times and smoother transitions between different machining tasks.



5. Reduced Vibration for Better Results

Vibration during machining can lead to poor surface finishes and accelerated tool wear. The Collet Holder helps mitigate these issues by providing a stable and robust clamping force. This stability reduces the amount of vibration transmitted to the workpiece, resulting in better surface finishes and prolonged tool life. By minimizing vibrations, the 3J Collet System contributes to achieving higher-quality machining results.



6. Durability and Longevity

The durability of the 3J Collet System is another noteworthy advantage. Constructed from high-quality materials, the High-Accuracy Collet is designed to withstand the rigors of intensive machining operations. Its robust construction ensures a long service life, reducing the frequency of replacements and maintenance. This durability translates into cost savings over time and ensures reliable performance in demanding environments.



7. Cost-Effectiveness

While the initial investment in the 3J Collet System might be higher compared to other options, the long-term benefits make it a cost-effective choice. The precision, reduced tool wear, and improved tool life contribute to lower overall costs in machining operations. Additionally, the increased efficiency from quicker tool changes and reduced downtime further enhances the cost-effectiveness of the system.



Applications of the 3J Collet System



The versatility of the 3J Collet System makes it suitable for a wide range of applications, including:

  1. CNC Machining: For high-precision CNC operations, the 3J Collet System provides the accuracy needed to achieve tight tolerances and intricate details.
  2. Lathe Work: In turning applications, the system ensures a firm grip on the workpiece, which is essential for producing accurate and consistent results.
  3. Drilling and Milling: The adaptability of the 3J Collet System makes it an excellent choice for drilling and milling tasks, where precision and stability are critical.



Selecting the Right 3J Collet System

When choosing a 3J Collet System, consider the following factors to ensure it meets your specific needs:



  • Compatibility: Verify that the collet system is compatible with your machine’s spindle and other components. For best results, compatibility must be maintained.
  • Size Range: Choose a collet system that can accommodate the range of tool sizes you frequently use. A versatile collet system can handle various tool diameters and shapes.
  • Material Quality: Opt for collets made from high-quality materials to ensure durability and reliability. High-grade materials contribute to the collet’s longevity and overall performance.



Conclusion

The 3J Tool Holder offers numerous advantages that make it a superior choice for precision machining. Its exceptional precision, versatility, and durability contribute to improved machining outcomes and cost-effectiveness. Whether you are involved in CNC machining, lathe work, or other high-precision tasks, the 3J Collet System can enhance your efficiency and the quality of your results.

By understanding the benefits of the 3J Collet System and selecting the right collet for your applications, you can achieve greater accuracy, better tool life, and overall improved performance in your machining processes. The 3J Collet System stands out as a reliable and efficient choice for professionals seeking to elevate their machining operations to new heights.

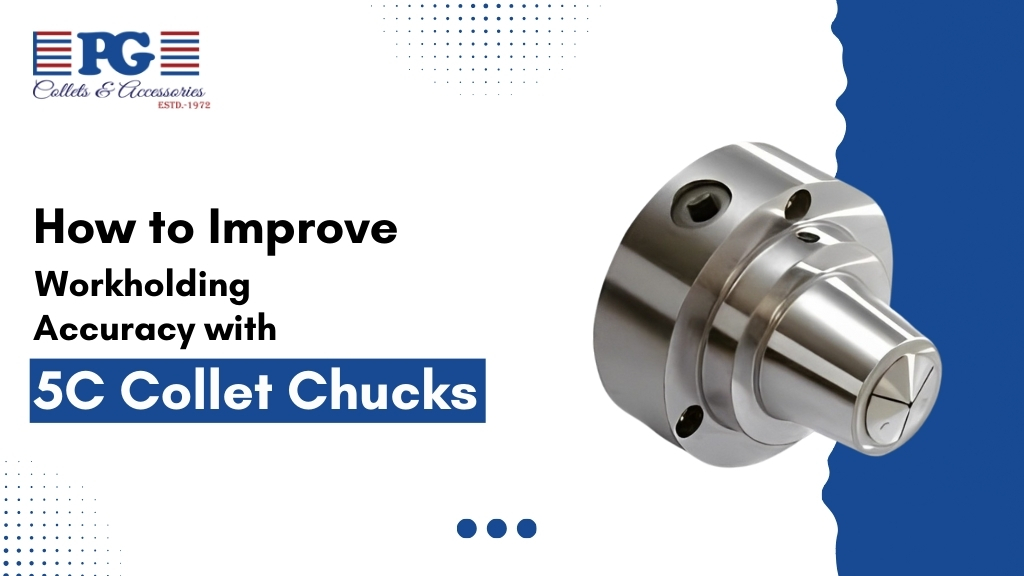

How to Improve Workholding Accuracy with 5C Collet Chucks

Introduction to 5C Collet Chucks

In precision machining, achieving optimal workholding accuracy is paramount for ensuring consistent and high-quality production outcomes. 5C collet chucks stand out as essential tools designed to enhance workpiece stability and precision during machining operations. This article explores the mechanics, advantages, practical applications, and integration considerations of 5C collet chucks, emphasizing their critical role in improving workholding accuracy.

Understanding the Mechanics of 5C Collet Chucks

5C collet chucks operate based on a mechanism that involves compressing collets uniformly around workpieces. This compression ensures a secure grip, minimizing workpiece movement and vibration during machining processes. The result is enhanced stability and accuracy, crucial for achieving precise machining results across various applications.

Key Features of 5C Collet Chucks

  • Precision and Tolerance:

One of the primary features of Precision Collet Chuck is their ability to maintain tight tolerances and concentricity. This precision is essential for applications where minimal runout and consistent machining dimensions are critical.

  • Versatility in Machining Operations:

5C collet chucks are versatile tools that can accommodate a wide range of workpiece sizes and shapes. They are suitable for turning, milling, drilling, and other machining processes, offering flexibility in production setups.

  • Ease of Use and Efficiency:

With quick collet changes and straightforward setup procedures, this collet enhance operational efficiency by reducing downtime between machining operations. Machinists can swiftly adjust to different workpiece dimensions, optimizing workflow and produc.tivity



Advantages of Using 5C Collet Chucks

  • Enhanced Workpiece Security

The secure grip provided by 5C Collet Holder minimizes the risk of workpiece slippage or misalignment during machining. This enhances overall workpiece security and allows for more aggressive cutting parameters without compromising accuracy.

  • Improved Surface Finish Quality

By reducing vibrations and ensuring stable workholding, 5C collet chucks contribute to achieving smoother surface finishes on machined parts. This is particularly beneficial in applications requiring high aesthetic or functional surface quality.

  • Cost-Effectiveness and Durability

Constructed from durable materials, these collet chucks offer long-term reliability and cost-effectiveness in industrial environments. They require minimal maintenance and can withstand the rigors of heavy-duty machining operations.



Practical Applications of 5C Collet Chucks



  1. Turning OperationsIn lathe applications, Precision collet chuck securely grip cylindrical workpieces, allowing for precise turning operations. Machinists can efficiently change collets to accommodate different diameters, supporting a wide range of turning tasks.

  2. Milling and DrillingFor milling and drilling operations, this collet provide robust clamping force necessary for accurate hole positioning and complex machining tasks. Their stability and precision contribute to achieving tight tolerances and geometrically accurate features.

Integration Considerations

  1. Compatibility with Machining EquipmentWhen integrating 5C collet chucks into existing machining setups, compatibility with lathe or milling machine specifications is crucial. Proper alignment and setup ensure seamless operation and maximize the efficiency of machining processes.

  2. Tooling Options and AccessoriesSelecting appropriate collets and accessories tailored to specific machining requirements optimizes the performance of 5C collet chucks. Machinists can choose from various collet sizes, materials, and configurations to suit diverse production needs effectively.



Implementing 5C Collet Chucks for Improved Workholding

Precision Machining Techniques

Achieving superior workholding accuracy with 5C collet chucks involves meticulous setup and operational practices:

  • Optimal Collet Selection: Choosing collets based on workpiece dimensions and material properties.
  • Secure Clamping: Ensuring proper collet insertion and tightening procedures to prevent slippage or movement during machining.

Maintenance and Care Tips

To maintain peak performance of 5C collet chucks:

  • Regular Cleaning and Inspection: Removing debris and inspecting for wear or damage to collets and chucks.
  • Lubrication: Applying lubricants to collet threads and chuck mechanisms to enhance operational smoothness and longevity.
  • Storage Practices: Storing collets in a clean, dry environment to prevent corrosion and maintain gripping effectiveness.

Conclusion

In conclusion, 5C Collet Holder are indispensable tools in precision machining environments, offering unparalleled precision, versatility, and reliability. By understanding their mechanics, advantages, and practical applications, machinists can leverage 5C collet chucks to enhance workholding accuracy and optimize machining efficiency. Incorporating best practices in setup, maintenance, and tooling selection ensures consistent performance and extends the operational lifespan of 5C collet chucks, making them essential components in achieving machining excellence across various industrial sectors.
