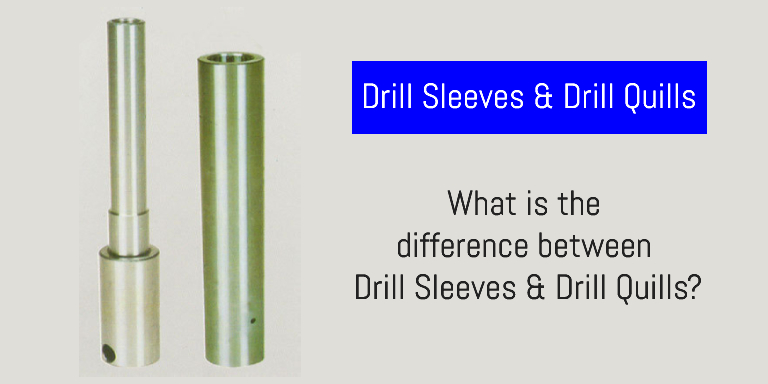

What is the difference between Drill Sleeves & Drill Quills?

Drill sleeves and drill quills are highly appreciated by every industry due to their apprehensive features and extreme tensile strength and offer a wide range of applications in different industries. There are many types of drill sleeves, such as r8 Collet, for the application of various varieties.

The machines, including 5c collet, are fabricated inappropriately to avoid vibrations to ensure the rigidity of the drill sleeves and drill quills. There is no visible difference between the drill sleeves and drill quills, but they both are available for specific work. These drills are usually customized for the requirements of a particular task or client.



What are the benefits of Drill sleeves or drill quills?

Drill quill machine has saved human power in the best possible way. Besides this, it offers the following benefits to the user:

  • Drill quill offer power and torque to the mounted motor for you to hold on to the machine.
  • This machine allows the user to fit comparatively more significant bits of drill chuck to add the power and torque of the system.
  • It consists of fences that control the positioning so that the user can drill the holes in a row quickly from the distance of the edge of an item. It settles the material accurately for holes positions and clamps at the right place.
  • It settles the material accurately for holes positions and clamps at the right place.
  • This machine holds and clamps against the grabbing and spin.
  • It has the ability to precisely control depth.
  • The drilling sleeves or quills are capable of controlling the drilling pressure to various applications, whether it is hard, thin, or brittle.
  • The RPM of drilling can be set on the reasonable and accurate range on the drill press.
  • Tends of handhelds vary in speed triggers that allow the user variation according to their task but restrict them to managing a particular speed.
  • Drill sleeves or quills have fixed relationships with the drill chuck and its system, and this makes it easier to drill holes at tight angles, especially at 90 degrees perpendicular in both directions. Along with this, it can also cut at other angles of table tilt.



Conclusion

The PG collet has précised holding devices like 16c collet. These are only designed for manufacturing best-quality work holding and tool holding solutions for manufacturing industries throughout the world. PG collet’s primary focus is the product quality and good customer service of précised machine components, machine tools accessories, and collets that gives best results in a brief period for the requirement of our customers.



Enquire Now



How does the F37 collet works, and why is it important?

F37 is the most effective collet chuck to develop a collar around the object or tool. Its clamping can be held in the most reliable place. F37 collet is generally used for smaller items where standard chucks can’t offer the best results and are inefficient.

The manufactured material of this collet is special collet steel and is available in customized length. Besides this, there is another 3j collet that is smooth and specially designed to hold workpieces of machinery tools, for example, lathe, etc. But F37 is widely used for the manufacturing of metal and semiconductor fabrication.



How does the F37 collet works?

This collet is best used to turn up the top spindle RPMs as it is less effective than jaw chuck. The developed centrifugal force in the middle of the collet mainly targets reducing the clamping pressure on the chuck but does not negatively touch the collet. It enhances the factor in a top-notch manner.

In the same way, the acceleration of collet is faster for less production. At this time, controlling the spindle weight would never be a good idea. Instead, the user can use the collet in a top-notch manner which is the most effective solution.

Here the changeover time of the collet is effectively reduced, which is the best feature of the F37 collet. It takes only a few minutes to change the collet without any hurdle. These processes are considered very effective and have more impacts and save the time of the user.



What is the importance of F37 Collet?

The primary reason for the popularity of F37 collet is exclusive features that are offered to the users, that are following:

  • These collets are available in wide clamping ranges that consist of internal pads. These pads have replaceable and offer various advantages in the best possible way.
  • These collets are available in various sizes that effectively minimize the holding cost in the best possible way.
  • It is the most accurate and secured type of collet because the grip of these collets is used to bring them closer to the machined part.
  • The best chucks are capable of projecting any tool of the machine beyond the chuck. It can affect the rigidity in the best possible way.
  • In secondary operations, their collects can maintain a robust grip around the periphery parts, resulting in more rotational concentricity.
  • An accurately rounded part is possible with a specific jaw chuck.



Conclusion

173e collet are the best use for various functions in different machinery tools. It adds extra features like resistance, better functioning, hardness, and many more. Contact pg collets to get suitable raw material with different sizes and shapes. We also design custom collets as per the requirements of function and customers.



Enquire Now

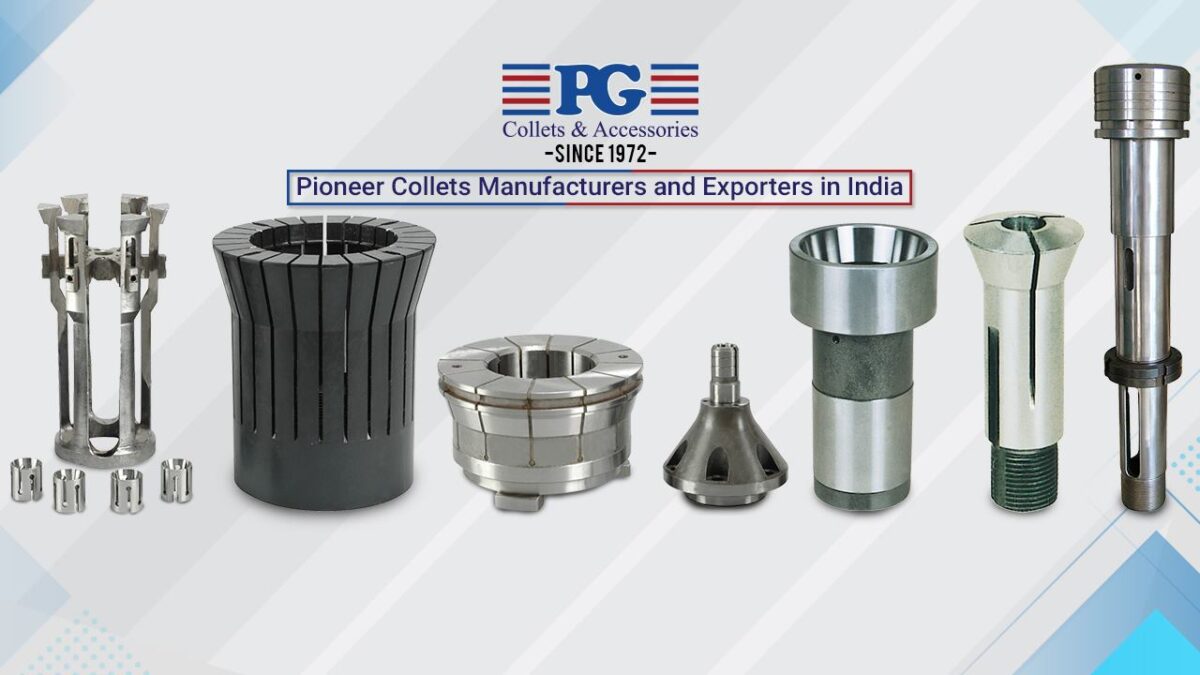

Quality Collets Manufacturers and Exporters in India and Abroad

The collet is a kind of chuck subtype to form a color around any machine’s object to exert a strong clamping force. This feature is shown when an outer tapered collar tightens it. Now custom collet manufacturer are available for machinery throughout the world.

The primary function of these collets is to hold the work-piece or a tool of the machine. The collet device can be squeezed against the matching taper. For example, the inner surface starts contracting on a smaller diameter and squeezes the work-piece or tool to hold the object securely. Many collets are available in the market, but 16c emergency collet has been a savior for most industries at the time of any emergency.



General Characters of Best & Qualified Collets

Usually, the collet chuck is referred to as a unit that consists of a tapered receiving sleeve. This sleeve is integrated with the machine spindle. The other object is collet proper which is made up of spring steel. This object is inserted into the receiving sleeve and a cap that is screwed over the collet. Later it is clamped via another taper.

Collet has numerous collets along with narrow clamping, which is required to hold the range of bits. This feature makes them unsuitable for the general use of electric drills, etc. But other types of chucks can combine various traits into one chuck and make it more useful for repetitive functions.



PG Collets, the Manufacturers & Exporters in India as well as in Abroad

The PG Collets are the largest manufacturers of multiple collets. We are also the largest exporters of such collets in India as well as abroad. PG collets have been known for their services and qualified products at their doorstep since 1972.



The PG collets are successfully manufacturing and supplying the DIN 6343 collets for the machinery of various industries such as collets for driveline manufacturing, mandrels, Traub collets, and its accessories, collets for second operation machines, collet and feed fingers for different spindle machines, collets, and accessories for milling machines such as:

  • R8 collet
  • 5C collet
  • 16C collet
  • 3J collet
  • 5C emergency collet
  • 16C emergency collet
  • 173E collet and so on.



Conclusion

PG Collets are the largest collet manufacturer in India. It is widely used in multiple industries throughout the world due to its never ending list of benefits. This is why the collets of PG collets are considered as a premier quality of collet manufacturer and expert of India that is providing their best products throughout the world.



Enquire Now

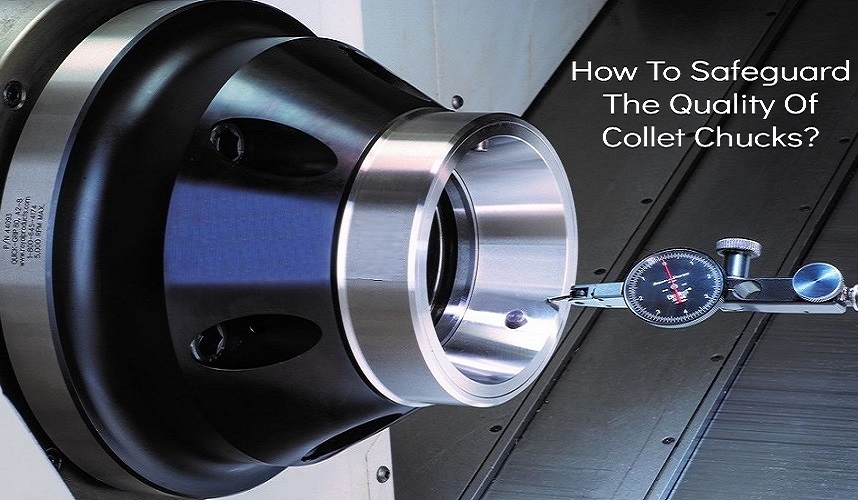

How To Safeguard The Quality Of Collet Chucks?



The collet is a subtype of the chuck. It is used to form a collar that surrounds the object to help and pass a full clamping force on the thing when it is tightened through the tapered outer collar.

Collets chucks are also helpful to hold a workpiece or any tool. The collets are usually available in small sizes, with different varieties to use with multiple devices. That is the reason that CNC or VMC machines require more collets in their work system.

Due to their variety in size and quantity, scattering the workplace of the system may become very clumsy. However, it is impossible to get all the features at the same place, or that may have the risk of damaging and losing the collets.



To collect the best collet chucks, the user should consider the following unique characteristics in the market:



1. Raw Material

The quality of the product is a significant motive of any industry. The collet racks are manufactured by cold rolled steel to withstand the most complicated working environment. The unique feature of this cold rolled steel is that it can withstand the industry’s high wear and tear capability.



2. Powder Coating

The collet racks made up of cold-rolled steel is coated with powder. Powder coating is a better option than painting the collet rack because the powder coating will make the collet chucks best suited for the work environment, preventing the object from rusting. The collet racks have a thickness of 16 gauge and are available in black colour.



3. Angled Fashion

The mounting of collet racks in the table is straightforward. The holes are separately provided here, and it is also transportable from one place to another place. These trays are mounted in angled fashion at 10 degrees inclined, which makes them best suited to fit in collets and becomes very convenient to use for others. There are many varieties of collet chucks available in the market such as:



ER/DR/RD Series

  • ER/DR/RD 11 series 115 collet capacity
  • ER/DR/RD 16 series 69 collet capacity
  • ER/DR/RD 20 series 69 collet capacity
  • ER/DR/RD 25 series 63 collet capacity
  • ER/DR/RD 32 series 34 collet capacity
  • ER/DR/RD 40 series 34 collet capacity
  • ER/DR/RD 50 series 22 collet capacity



DA Series

  • DA 100-69 collets capacity
  • DA 180-63 collets capacity
  • DA 200-115 collets capacity
  • DA 300-115 collet capacity



TG Series

  • TG 75-34 collets capacity
  • TG 100-34 collets capacity
  • TG 150-22 collets capacity



Conclusion

To secure the quality of collet chucks is very important for better products to enhance the productivity of the industries. Follow the given step to ensure the collet quality. If you want to buy collet chucks for your industry, contact PG Collets – Collet Manufacturer in India, to get 100% qualified products. We have high quality collets with concentricity i.e. R8 Collet, 5C Collet, 16C Collet, etc.
